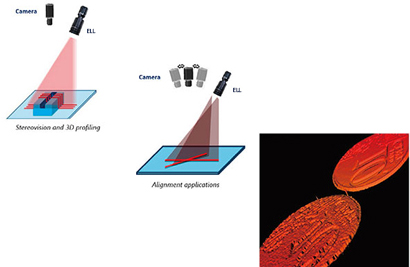

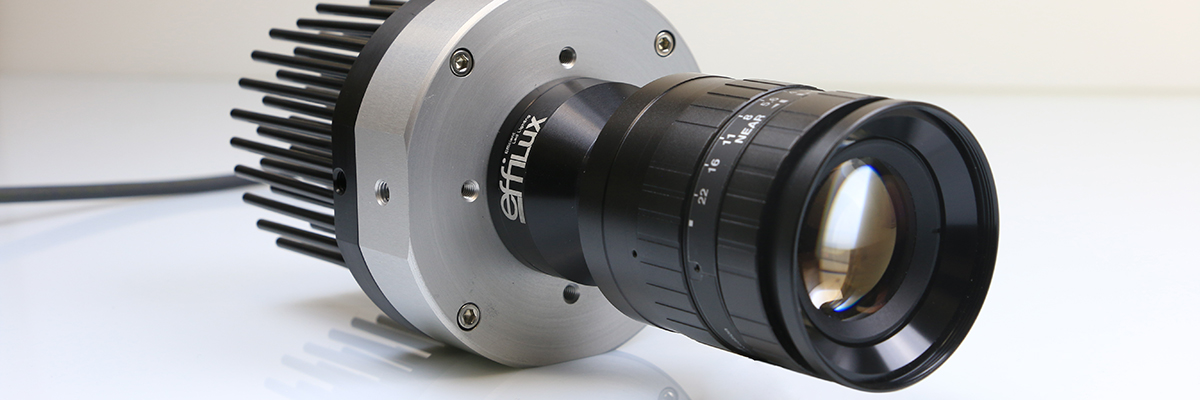

The ELL Series is a structured light source, which is ideal for 3D reconstruction applications or Stereo Vision applications.
This Series offers great accuracy by using C-mount lens projection and offering three different masks: Line, Grid, or Cloud of Dots.
Since the ELL Series is a LED-based lighting solution, it is available in different colors. Furthermore, users do not have to worry about the speckle problem, eye safety, or lifetime issues. This makes the ELL Series the ideal substitute for lasers.
The ELL is available with different type of masks.
| 1 line: 10μm line length : 13mm
|
Cloud of dots density 50% Surface 12.8x9.6 mm²
|
Grid 40x40 lines 50μm Surface 10x10 mm²
|
The ELL is available with different type of masks.
Mask dimensions : 13mm x 10μm (-LN) |
||||
|---|---|---|---|---|
| f = 12.5 mm | 0.25 mm | 0.40 mm | 0.64 mm | 0.80 mm |
| f = 16 mm | 0.20 mm | 0.32 mm | 0.48 mm | 0.60 mm |
| f = 35 mm | 0.08 mm | 0.14 mm | 0.23 mm | 0.28 mm |
| f = 50 mm | 0.06 mm | 0.10 mm | 0.16 mm | 0.20 mm |
| f = 75 mm | n.a. | n.a. | 0.10 mm | 0.13 mm |
Mask dimensions: 12.8mm x 9.6mm (-CD) |
||||
|---|---|---|---|---|
| f = 12.5 mm | 32cm x 23cm | 51cm x 37cm | 82cm x 59cm | 102cm x 73cm |
| f = 16 mm | 25cm x 19cm | 41cm x 31cm | 66cm x 49cm | 82cm x 61cm |
| f = 35 mm | 11cm x 8cm | 18cm x 14cm | 29cm x 22cm | 36cm x 27cm |
| f = 50 mm | n.a. | 12cm x 9cm | 20cm x 15cm | 25cm x 19cm |
| f = 75 mm | n.a. | n.a. | 13cm x 10cm | 16cm x 12cm |
| ELL | ELL-CP-30SW-LN | White | 5500 K ± 500 K | M8 | 200g | Line |  |
 |
| ELL | ELL-CP-30BL-LN | Blue | 465 nm | |||||
| ELL | ELL-CP-30GR-LN | Green | 525 nm | |||||
| ELL | ELL-CP-30RD-LN | Red | 625 nm | |||||
| ELL | ELL-CP-30IR-LN | Infrared | 850 nm | |||||
| ELL | ELL-CP-30SW-CD | White | 5500 K ± 500 K | M8 | 200g | Cloud of dots | |
|
| ELL | ELL-CP-30BL-CD | Blue | 465 nm | |||||
| ELL | ELL-CP-30GR-CD | Green | 525 nm | |||||
| ELL | ELL-CP-30RD-CD | Red | 625 nm | |||||
| ELL | ELL-CP-30IR-CD | Infrared | 850 nm | |||||
| ELL | ELL-CP-30SW-GD | White | 5500 K ± 500 K | M8 | 200g | Grid | |
|
| ELL | ELL-CP-30BL-GD | Blue | 465 nm | |||||
| ELL | ELL-CP-30GR-GD | Green | 525 nm | |||||
| ELL | ELL-CP-30RD-GD | Red | 625 nm | |||||
| ELL | ELL-CP-30IR-GD | Infrared | 850 nm |
| ELL | ELL-PV-30SW-LN | White | 5500 K ± 500 K | 45W | 15W | M12 | 400g | Line | |
|
| ELL | ELL-PV-30BL-LN | Blue | 465 nm | |||||||
| ELL | ELL-PV-30GR-LN | Green | 525 nm | |||||||
| ELL | ELL-PV-30RD-LN | Red | 625 nm | |||||||
| ELL | ELL-PV-30IR-LN | Infrared | 850 nm | |||||||
| ELL | ELL-PV-30SW-CD | White | 5500 K ± 500 K | 45W | 15W | M12 | 400g | Cloud of dots | |
|
| ELL | ELL-PV-30BL-CD | Blue | 465 nm | |||||||
| ELL | ELL-PV-30GR-CD | Green | 525 nm | |||||||
| ELL | ELL-PV-30RD-CD | Red | 625 nm | |||||||
| ELL | ELL-PV-30IR-CD | Infrared | 850 nm | |||||||
| ELL | ELL-PV-30SW-GD | White | 5500 K ± 500 K | 45W | 15W | M12 | 400g | Grid | |
|
| ELL | ELL-PV-30BL-GD | Blue | 465 nm | |||||||
| ELL | ELL-PV-30GR-GD | Green | 525 nm | |||||||
| ELL | ELL-PV-30RD-GD | Red | 625 nm | |||||||
| ELL | ELL-PV-30IR-GD | Infrared | 850 nm | |||||||
