ELB Series

The ELB Series is a high-power flood type bar light designed around flexibility to answer the needs of many machine vision applications.

With the ELB Series, it is esy to adjust the product mechanically, optically, and electronically. This makes it easy for the ELB Series to adapt to any application requirements for instance, users can select the correct lens position depending on the irradiation distance. The ELB Series is also shipped with three different diffuser plates, so that the uniformity can be adjusted to the needs of the user.

Furthermore, the integrated controller with auto-strobe features allows for 300% increase intensity while being strobed when compared to continuous mode.

‣ Window

The ELB Series is shipped with three different diffusers. Depending on what uniformity is needed for the application, the user can select and easily change to the diffuser that fulfills the application requirements.

CW : Clear window	SD : Semi-diffuse window	DF : Diffuse window

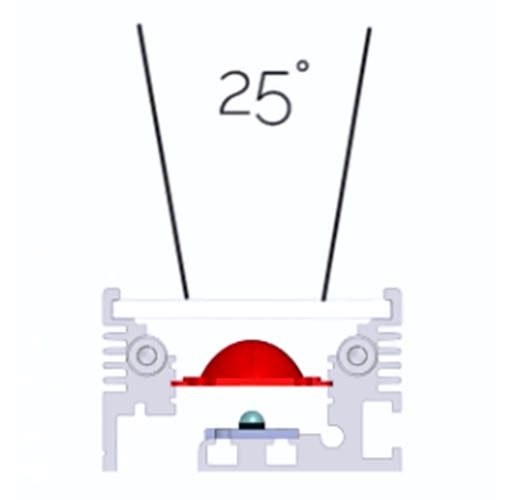

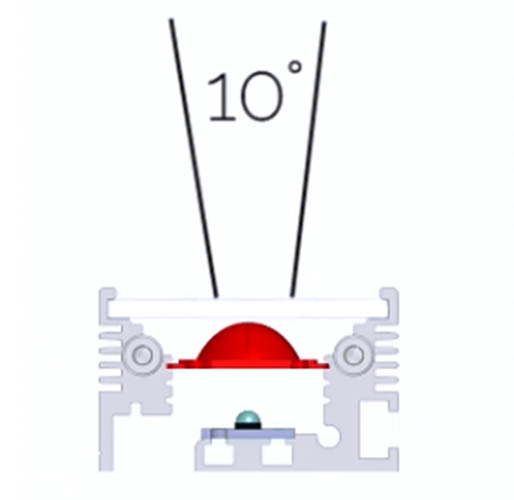

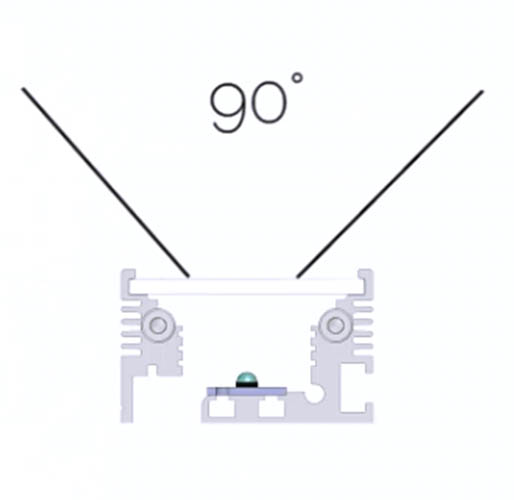

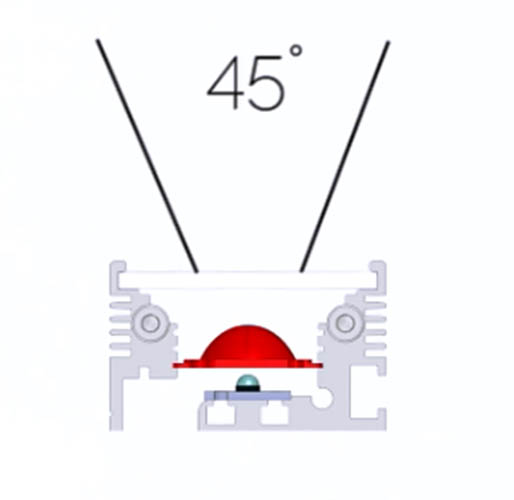

‣ Lens Position

The ELB Series offers flexibility in its lens positioning, which can be easily adjusted to depending on the irradiation distance.

Position	P0 ( Without lens)	P1	P2	P3
Angle

‣ Optical options

With the polarizer for the ELB Series, it is possible to eliminate glare from your workpiece, making it easier to acquire a suitable image for your application.

Without polarizer	With polarizer

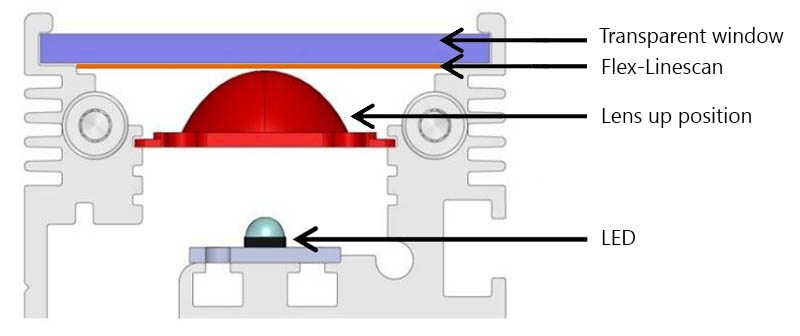

The ELB Series will also offer a ‘linescan accessory’, transforming the ELB Series into a line light useable as either a brightfield or darkfield illumination.

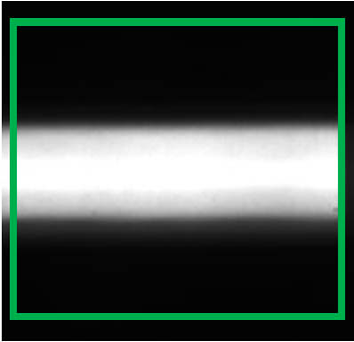

Configuration	Without linescan	With linescan

When the lens is position in P3, the polarizer and the linescan accessory cannot be used together. If necessary, a thinner polarizer is available.

‣ The L2 version : ELB-L2

The ELB Series is also available with 1 led on every 2 positions, which is called the ELB-L2 Series. For further information, please contact your CCS representative.

‣ ELB : Product Line Up

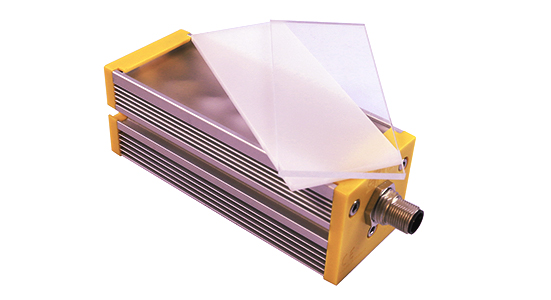

The ELB Series is standard delivered as a package: the product in the classic configuration (SD diffuser and the lens at P2 position) and the two other diffusers (DF and CW), allowing the users to select the correct diffuser for their application needs:

ELB : Standard version

SERIES	Part Number	Color	Wavelength / Color temperature	Power Consumption		Connector	Weight	Optical Length (L_op)	CAD	Datasheet
SERIES	Part Number	Color	Wavelength / Color temperature	Strobe	Continuous	Connector	Weight	Optical Length (L_op)	CAD	Datasheet
ELB	ELB-100SW	White	5500 K ± 500 K	20W	8W	M12	400g	100mm
ELB	ELB-100UV	Ultraviolet	405 nm
ELB	ELB-100BL	Blue	465 nm
ELB	ELB-100GR	Green	525 nm
ELB	ELB-100RD	Red	625 nm
ELB	ELB-100IR	Infrared	850 nm
ELB	ELB-200SW	White	5500 K ± 500 K	40W	15W	M12	700g	200mm
ELB	ELB-200UV	Ultraviolet	405 nm
ELB	ELB-200BL	Blue	465 nm
ELB	ELB-200GR	Green	525 nm
ELB	ELB-200RD	Red	625 nm
ELB	ELB-200IR	Infrared	850 nm
ELB	ELB-300SW	White	5500 K ± 500 K	60W	20W	M12	1000g	300mm
ELB	ELB-300UV	Ultraviolet	405 nm
ELB	ELB-300BL	Blue	465 nm
ELB	ELB-300GR	Green	525 nm
ELB	ELB-300RD	Red	625 nm
ELB	ELB-300IR	Infrared	850 nm
ELB	ELB-400SW	White	5500 K ± 500 K	80W	30W	M12	1300g	400mm
ELB	ELB-400UV	Ultraviolet	405 nm
ELB	ELB-400BL	Blue	465 nm
ELB	ELB-400GR	Green	525 nm
ELB	ELB-400RD	Red	625 nm
ELB	ELB-400IR	Infrared	850 nm
ELB	ELB-500SW	White	5500 K ± 500 K	95W	35W	M12	1600g	500mm
ELB	ELB-500UV	Ultraviolet	405 nm
ELB	ELB-500BL	Blue	465 nm
ELB	ELB-500GR	Green	525 nm
ELB	ELB-500RD	Red	625 nm
ELB	ELB-500IR	Infrared	850 nm
ELB	ELB-600SW	White	5500 K ± 500 K	115W	45W	M12	1900g	600mm
ELB	ELB-600UV	Ultraviolet	405 nm
ELB	ELB-600BL	Blue	465 nm
ELB	ELB-600GR	Green	525 nm
ELB	ELB-600RD	Red	625 nm
ELB	ELB-600IR	Infrared	850 nm
ELB	ELB-700SW	White	5500 K ± 500 K	135W	50W	M12	2200g	700mm
ELB	ELB-700UV	Ultraviolet	405 nm
ELB	ELB-700BL	Blue	465 nm
ELB	ELB-700GR	Green	525 nm
ELB	ELB-700RD	Red	625 nm
ELB	ELB-700IR	Infrared	850 nm
ELB	ELB-800SW	White	5500 K ± 500 K	155W	55W	M12	2500g	800mm
ELB	ELB-800UV	Ultraviolet	405 nm
ELB	ELB-800BL	Blue	465 nm
ELB	ELB-800GR	Green	525 nm
ELB	ELB-800RD	Red	625 nm
ELB	ELB-800IR	Infrared	850 nm
ELB	ELB-900SW	White	5500 K ± 500 K	175W	60W	M12P	2800g	900mm
ELB	ELB-900UV	Ultraviolet	405 nm
ELB	ELB-900BL	Blue	465 nm
ELB	ELB-900GR	Green	525 nm
ELB	ELB-900RD	Red	625 nm
ELB	ELB-900IR	Infrared	850 nm
ELB	ELB-1000SW	White	5500 K ± 500 K	190W	65W	M12P	3100g	1000mm
ELB	ELB-1000UV	Ultraviolet	405 nm
ELB	ELB-1000BL	Blue	465 nm
ELB	ELB-1000GR	Green	525 nm
ELB	ELB-1000RD	Red	625 nm
ELB	ELB-1000IR	Infrared	850 nm
ELB	ELB-1100SW	White	5500 K ± 500 K	210W	70W	M12P	3400g	1100mm
ELB	ELB-1100UV	Ultraviolet	405 nm
ELB	ELB-1100BL	Blue	465 nm
ELB	ELB-1100GR	Green	525 nm
ELB	ELB-1100RD	Red	625 nm
ELB	ELB-1100IR	Infrared	850 nm
ELB	ELB-1200SW	White	5500 K ± 500 K	210W	75W	M12P	3400g	1200mm
ELB	ELB-1200UV	Ultraviolet	405 nm
ELB	ELB-1200BL	Blue	465 nm
ELB	ELB-1200GR	Green	525 nm
ELB	ELB-1200RD	Red	625 nm
ELB	ELB-1200IR	Infrared	850 nm
ELB	ELB-1300SW	White	5500 K ± 500 K	250W	85W	M12P	4000g	1300mm
ELB	ELB-1300UV	Ultraviolet	405 nm
ELB	ELB-1300BL	Blue	465 nm
ELB	ELB-1300GR	Green	525 nm
ELB	ELB-1300RD	Red	625 nm
ELB	ELB-1300IR	Infrared	850 nm
ELB	ELB-1400SW	White	5500 K ± 500 K	270W	90W	M12P	4300g	1400mm
ELB	ELB-1400UV	Ultraviolet	405 nm
ELB	ELB-1400BL	Blue	465 nm
ELB	ELB-1400GR	Green	525 nm
ELB	ELB-1400RD	Red	625 nm
ELB	ELB-1400IR	Infrared	850 nm
ELB	ELB-1500SW	White	5500 K ± 500 K	290W	65W	M12P	4600g	1500mm
ELB	ELB-1500UV	Ultraviolet	405 nm
ELB	ELB-1500BL	Blue	465 nm
ELB	ELB-1500GR	Green	525 nm
ELB	ELB-1500RD	Red	625 nm
ELB	ELB-1500IR	Infrared	850 nm
ELB	ELB-1600SW	White	5500 K ± 500 K	310W	100W	M12P	4900g	1600mm
ELB	ELB-1600UV	Ultraviolet	405 nm
ELB	ELB-1600BL	Blue	465 nm
ELB	ELB-1600GR	Green	525 nm
ELB	ELB-1600RD	Red	625 nm
ELB	ELB-1600IR	Infrared	850 nm

ELB-L2 : 1 LED on 2 positions version

SERIES	Part Number	Color	Wavelength / Color temperature	Power Consumption		Connector	Weight	Optical Length (L_op)	CAD	Datasheet
SERIES	Part Number	Color	Wavelength / Color temperature	Strobe	Continuous	Connector	Weight	Optical Length (L_op)	CAD	Datasheet
ELB-L2	ELB-L2-200SW	White	5500 K ± 500 K	200W	8W	M12	700g	200mm
ELB-L2	ELB-L2-200UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-200BL	Blue	465 nm
ELB-L2	ELB-L2-200GR	Green	525 nm
ELB-L2	ELB-L2-200RD	Red	625 nm
ELB-L2	ELB-L2-200IR	Infrared	850 nm
ELB-L2	ELB-L2-400SW	White	5500 K ± 500 K	40W	15W	M12	1300g	400mm
ELB-L2	ELB-L2-400UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-400BL	Blue	465 nm
ELB-L2	ELB-L2-400GR	Green	525 nm
ELB-L2	ELB-L2-400RD	Red	625 nm
ELB-L2	ELB-L2-400IR	Infrared	850 nm
ELB-L2	ELB-L2-600SW	White	5500 K ± 500 K	60W	20W	M12	1900g	600mm
ELB-L2	ELB-L2-600UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-600BL	Blue	465 nm
ELB-L2	ELB-L2-600GR	Green	525 nm
ELB-L2	ELB-L2-600RD	Red	625 nm
ELB-L2	ELB-L2-600IR	Infrared	850 nm
ELB-L2	ELB-L2-800SW	White	5500 K ± 500 K	80W	30W	M12	2500g	800mm
ELB-L2	ELB-L2-800UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-800BL	Blue	465 nm
ELB-L2	ELB-L2-800GR	Green	525 nm
ELB-L2	ELB-L2-800RD	Red	625 nm
ELB-L2	ELB-L2-800IR	Infrared	850 nm
ELB-L2	ELB-L2-1000SW	White	5500 K ± 500 K	95W	35W	M12	3100g	1000mm
ELB-L2	ELB-L2-1000UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-1000BL	Blue	465 nm
ELB-L2	ELB-L2-1000GR	Green	525 nm
ELB-L2	ELB-L2-1000RD	Red	625 nm
ELB-L2	ELB-L2-1000IR	Infrared	850 nm
ELB-L2	ELB-L2-1200SW	White	5500 K ± 500 K	115W	45W	M12	3400g	1200mm
ELB-L2	ELB-L2-1200UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-1200BL	Blue	465 nm
ELB-L2	ELB-L2-1200GR	Green	525 nm
ELB-L2	ELB-L2-1200RD	Red	625 nm
ELB-L2	ELB-L2-1200IR	Infrared	850 nm
ELB-L2	ELB-L2-1400SW	White	5500 K ± 500 K	135W	50W	M12	4300g	1400mm
ELB-L2	ELB-L2-1400UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-1400BL	Blue	465 nm
ELB-L2	ELB-L2-1400GR	Green	525 nm
ELB-L2	ELB-L2-1400RD	Red	625 nm
ELB-L2	ELB-L2-1400IR	Infrared	850 nm
ELB-L2	ELB-L2-1600SW	White	5500 K ± 500 K	155W	55W	M12	4900g	1600mm
ELB-L2	ELB-L2-1600UV	Ultraviolet	405 nm
ELB-L2	ELB-L2-1600BL	Blue	465 nm
ELB-L2	ELB-L2-1600GR	Green	525 nm
ELB-L2	ELB-L2-1600RD	Red	625 nm
ELB-L2	ELB-L2-1600IR	Infrared	850 nm

‣ Optical accessories

Polarizer

Part Number	Applicable LED Unit
PL-ELB-100	ELB-100
PL-ELB-200	ELB-200 / ELB-L2-200
PL-ELB-300	ELB-300
PL-ELB-400	ELB-400 / ELB-L2-400
PL-ELB-500	ELB-500
PL-ELB-600	ELB-600 / ELB-L2-600
PL-ELB-700	ELB-700
PL-ELB-800	ELB-800 / ELB-L2-800
PL-ELB-900	ELB-900
PL-ELB-1000	ELB-1000 / ELB-L2-1000
PL-ELB-1100	ELB-1100
PL-ELB-1200	ELB-1200 / ELB-L2-1200
PL-ELB-1300	ELB-1300
PL-ELB-1400	ELB-1400 / ELB-L2-1400
PL-ELB-1500	ELB-1500
PL-ELB-1600	ELB-1600 / ELB-L2-1600

Linescan (linear lighting or darkfield lighting)

Part Number	Applicable LED Unit
LS-ELB-100	ELB-100
LS-ELB-200	ELB-200 / ELB-L2-200
LS-ELB-300	ELB-300
LS-ELB-400	ELB-400 / ELB-L2-400
LS-ELB-500	ELB-500
LS-ELB-600	ELB-600 / ELB-L2-600
LS-ELB-700	ELB-700
LS-ELB-800	ELB-800 / ELB-L2-800
LS-ELB-900	ELB-900
LS-ELB-1000	ELB-1000 / ELB-L2-1000
LS-ELB-1100	ELB-1100
LS-ELB-1200	ELB-1200 / ELB-L2-1200
LS-ELB-1300	ELB-1300
LS-ELB-1400	ELB-1400 / ELB-L2-1400
LS-ELB-1500	ELB-1500
LS-ELB-1600	ELB-1600 / ELB-L2-1600
